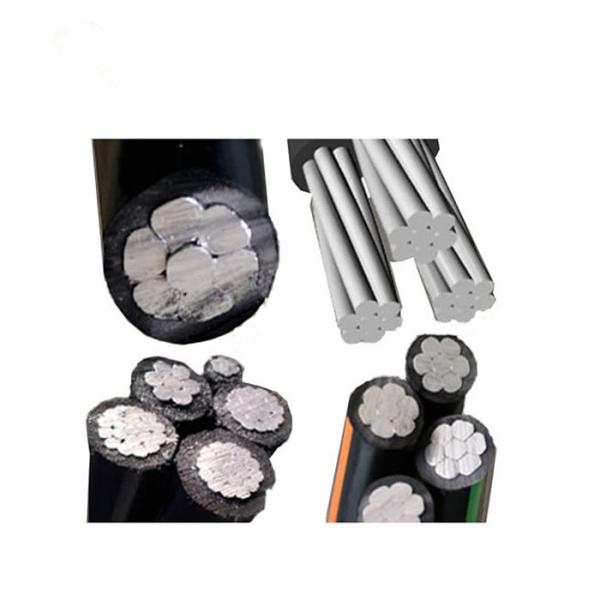

Iec61089 Astm B231 Aerial Bundled Cable For Overhead Transmission Line

Brand Name : Sanwu

Model Number : ABC

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : USD0.12-35 per meter

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : Wooden drum, steel drum or as your requirement

Name : ASTM B231 Aerial Bundled Cable

Insulation : PE XLPE PVC Insulation

Rated voltage : 0.6/1kv

Usage : overhead transmission line

Standard : IEC61089 ASTM B231

Package : Wooden drum, steel drum or as your requirement

Contact Now

IEC61089 ASTM B231 Aerial Bundled Cable Overhead Transmission Line

Overhead insulated cables are composed of copper or aluminum conductors, inner shielding layer, weather-resistant insulating material and outer shielding layer. Aerial insulated cable have not only the power transmission characteristics of power cables, but also the strong mechanical characteristics of overhead cables.

Details

Voltage

Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV

Technical Data
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree. Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.

To supply 120 volt aerial service for temporary service at construction sites,as a Service Drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting. For service at 600
volts or lower at a maximum conductor temperature of 75ºC for Polyethylene insulated cables or 90ºC for Cross-Linked (XLPE) insulation.

Standards of abc cable

Iec61089 Astm B231 Aerial Bundled Cable For Overhead Transmission Line

Code Name Phase Conductor Bare Neutral Messenger Weight Per 1000ft (lbs) Ampacity(amps)
Size AWG Stranding Insulation Thickness(mls) Size AWG Stranding Breaking Strength(lbs) XLPE Poly XLPE Poly
6201 ALLOY NEUTRAL-MESSENGER
Minex 6 Solid 45 6 7 1,110 106.6 102.9 85 70
Hippa 6 7 45 6 7 1,110 113.2 105.7 85 70
Prawn 4 Solid 45 4 7 1,760 158.4 154.1 115 90
Barnacles 4 7 45 4 7 1,760 168.3 158.2 115 90
Shrimp 2 7 45 2 7 2,800 253.7 239.7 150 120
Gammarus 1/0 7 60 1/0 7 4,460 411.7 386.0 205 160
Leda 1/0 19 60 1/0 7 4,460 402.7 386.0 205 160
Dungenese 2/0 7 60 2/0 7 5,390 506.8 476.3 235 185
Cyclops 2/0 19 60 2/0 7 5,390 495.3 476.3 235 185
Dlustra 3/0 19 60 3/0 7 6,790 611.4 589.1 275 215
Lepas 4/0 19 60 4/0 7 8,560 757.1 730.5 315 245
6201 ALLOY REDUCED NEUTRAL-MESSENGER
Artemia 4 Solid 45 6 7 1,110 141.4 137.1 115 90
Crab 4 7 45 6 7 1,110 151.3 141.2 115 90
Solaster 2 7 45 4 7 1,760 226.6 212.6 150 120
Sandcrab 1/0 7 60 2 7 2,800 368.8 343.1 205 160
Echinus 1/0 19 60 2 7 2,800 358.8 343.1 205 160
Crayfish 2/0 7 60 1 7 3,530 452.6 422.5 235 185
Sipho 2/0 19 60 1 7 3,530 441.0 422.5 235 185
Fulgar 3/0 19 60 1/0 7 4,460 543.4 521.1 275 215
Arca 4/0 19 60 2/0 7 5,390 671.2 644.6

We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ISO9001:2008, OHSAS, CCC, TUV Certifications.
